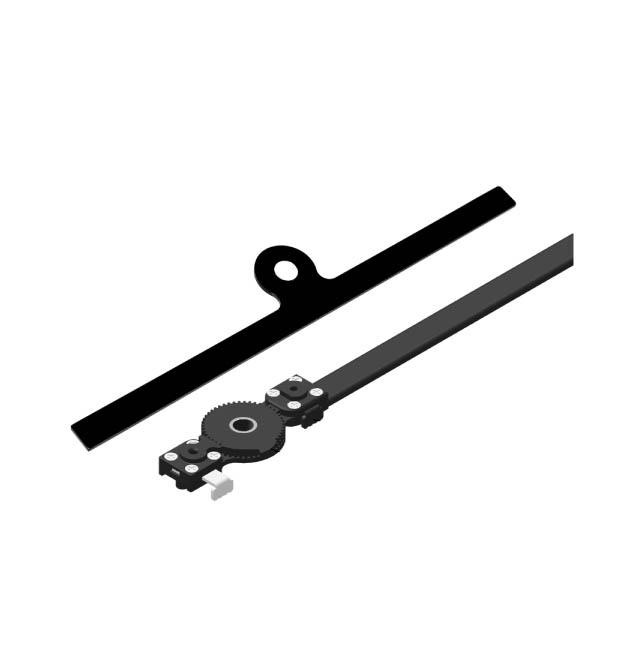

Ultraflex 2 Stainless Steel Ankle Joint


This joint can be used in the fabrication of custom orthoses for orthopedic rehabilitation and neurological spasticity treatment through low load stretching. These orthoses are considered therapeutic and are not designed for ambulation. Comes individually, specify left or right.

Range: -75 to ±75 degrees
Block ankle motion at 7.5 degree increments
Don-doff lock at any position at 7.5 degree increments
Removable power assists available (45, 60 and 90 lbs)
Weight: 119 grams per side (without bars or stirrup)
Stirrup kit included

Materials

Joints: Stainless steel
Sidebars: 5/8″ x 3/16″ (16×4.8 mm) 2024 aluminum, 12″ proximal bars
Stirrup: 1/2″ x 1/8″ (12.5 x 3 mm) 2024 aluminum
Non-corrosive coating: epoxy powder coating on bars and stirrups, black flouropolymer on joints

Test Data

M-L strength: 360 lb (160 kg)
AP strength: 500 lb (225 kg)
Number of cycles: 1 million

For use with the Ankle Joint Power Unit.
